Ahead-looking: Downscaling has lengthy been the driving drive in technological progress – from boosting computing energy by way of smaller transistors to advancing show expertise with micro-LEDs. Now, researchers from Zhejiang College and the College of Cambridge are pushing the boundaries of LED innovation even additional, unveiling the world’s smallest LEDs: nano-PeLEDs, primarily based on perovskite semiconductors.
These nano-PeLEDs characteristic pixel lengths as small as 90 nanometers, enabling an unprecedented pixel density of 127,000 pixels per inch (PPI). For comparability, a typical 27-inch 4K gaming monitor has a pixel density of simply 163 PPI.
“Making digital gadgets smaller is an eternal pursuit for scientists and engineers,” mentioned Professor Di Dawei, Deputy Director of the Worldwide Analysis Middle for Superior Photonics at Zhejiang College.
He defined that whereas micro-LEDs primarily based on III-V semiconductors are thought of state-of-the-art, their effectivity drops sharply when pixel sizes fall beneath 10 micrometers – a limitation that has hindered their use in ultra-high-resolution shows.
Not like typical micro-LEDs, nano-PeLEDs exhibit minimal efficiency degradation even at microscopic scales. This resilience is attributed to their distinctive composition: halide perovskites – a category of semiconductors extra generally related to photo voltaic cells. “Halide perovskites are a brand new class of semiconductors,” famous Professor Zhao Baodan of Zhejiang College.

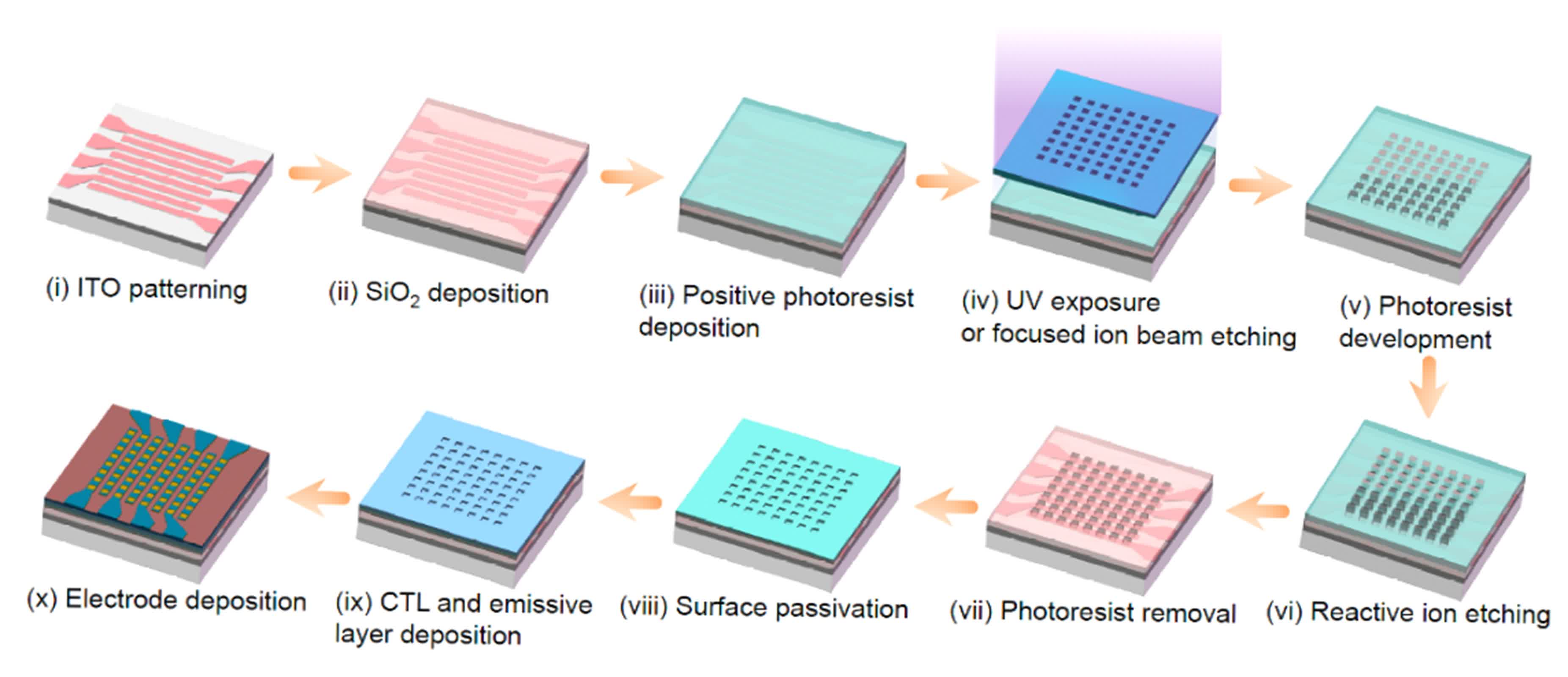

Creating nano-PeLEDs, nonetheless, was no easy process. Perovskite supplies are notoriously fragile and prone to break throughout typical photolithographic processes used to sample LED shows. To beat this, the analysis workforce developed a novel fabrication technique involving lithographically patterned home windows in an insulating layer. This system protects the fragile perovskite materials whereas preserving excessive picture high quality.
“Standard photolithographic processes are usually not appropriate for direct patterning of the perovskite layers – it could harm the supplies,” mentioned Lian Yaxiao, first creator of the examine, printed in Nature. “This downside is overcome by our localized contact fabrication scheme.”
The workforce demonstrated that their inexperienced and near-infrared nano-PeLEDs maintained exterior quantum efficiencies of round 20 % throughout pixel sizes starting from a number of hundred microns down to simply 3.5 microns.
Even at excessive miniaturization – roughly 180 nanometers – the drop in effectivity was considerably lower than that seen in conventional micro-LEDs. This implies that nano-PeLEDs might outperform III-V semiconductor-based micro-LEDs in purposes requiring ultra-small pixels.
Whereas nano-PeLEDs supply great promise for high-resolution shows, sensible implementation requires integration with programmable circuits able to dynamic content material supply. To that finish, Zhejiang College has partnered with LinkZill, a Hangzhou-based firm specializing in thin-film transistor (TFT) expertise.
Collectively, they developed a prototype active-matrix micro-PeLED show pushed by a TFT backplane. This prototype is essential to commercializing nano-PeLED expertise and unlocking its potential for complicated photos and video playback.
As researchers proceed refining this expertise, its potential purposes are quickly increasing. The ultra-high decision enabled by nano-PeLEDs might redefine show requirements throughout numerous industries – from gaming and augmented actuality to medical imaging.
